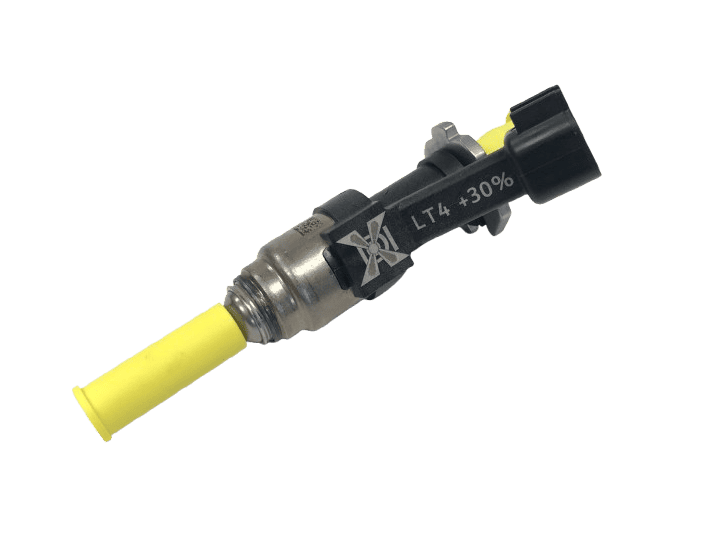

XDI +30% Injectors C7 Corvette LT1 / Z06 LT4 / GM Gen V

XDI +30% Direct Injector Set - C7 Corvette LT1 / C7 Z06 Corvette LT4 / GM Gen V V8 V6

Take your GM Gen V V8 or V6 direct injection engine to the next level with the XDI +30% direct injector set. Designed for high horsepower applications and E85 conversions, these injectors offer significantly increased flow over the factory units while retaining factory-quality drivability, idle stability, and cold start characteristics. Ideal for tuned, supercharged, and high-output naturally aspirated builds.

Key Features

• 50% more flow than production LT1/L86 injectors (15.3 g/sec OEM)
• 30% more flow than production LT4 injectors (17.7 g/sec OEM)
• Static Flow Rate: 23 g/sec (2000cc/min @ 100 bar)
• Maximum Rail Pressure: 221 bar / 3200 psi
• Compatible with all known fuels including all ethanol blends (E85)
• Bosch EV1 electric connector
• XDI driver profile (custom tuning required)
• 100% drop-in fitment with OEM spray pattern
• Stock-like cold start and idle (only one ECU value change required)
• Rigorously tested and matched at three critical operating points with full documentation

Injector Testing & Documentation

Every XDI injector set is individually tested and flow-matched at three critical operating points, with full documentation included:

• Idle Stability: 0.8 ms at 20 bar
• Static Flow Reference: 10 ms at 100 bar
• WOT Performance and Stability: 6 ms at 200 bar

Tuning Support

Custom tuning is required for use with these injectors. Supported tuning platforms include standalone ECUs, HP Tuners, and MoTeC.

Important: Global B ECU vehicles may require additional tuning on a case-by-case basis as we learn more about newer models. Returns are not accepted due to tuning difficulties — please confirm tuning capability before ordering. Additionally, these injectors are NOT compatible with 6mm shaft injector vehicles — applies to specific Silverado, Sierra, Suburban, Tahoe, Yukon, and Escalade variants. Please verify your engine's injector shaft size before ordering.

Vehicle compatibility and fitment notes are provided in the tabs above. Please ensure your vehicle's year, engine code, and injector shaft size are confirmed before ordering.

Not sure if these injectors suit your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
