Paragon 2-Piece Rear Brake Rotor Pair – Audi RS4 / RS5 B9 / B9.5 – 330x22mm

Designed for high-performance street and track use, the Paragon 2-Piece Rear Rotors provide a major upgrade in cooling efficiency, thermal stability, and unsprung weight reduction. Engineered for the Audi RS4 and RS5 B9 / B9.5 platforms, these 330mm x 22mm rotors bolt on directly while retaining full OEM ABS and brake bias functionality.

Why Choose Paragon Rotors?

• Track-proven cooling performance and fade resistance
• Significant unsprung weight savings for improved handling
• Floating design minimises heat distortion and judder
• CBN-machined and precision balanced for vibration-free braking

Key Features

• 330 x 22mm slotted rear rotors with directional cooling vanes
• Up to 30% cooler running vs OEM — less fade, more consistency
• Floating 2-piece design allows thermal expansion under load
• Slotted surface improves wet braking and pad bite
• CM-250 high-carbon alloy cast iron rotor rings – heat-treated and CBN-machined
• Run-out ≤ 0.03mm; dynamically balanced within 2 grams
• Rotor-to-hat mount: D-Bobbin (Short) – 10-bolt system
• Each rotor weighs 5.49 kg – saving approx. 0.77 kg per side vs OEM

Construction

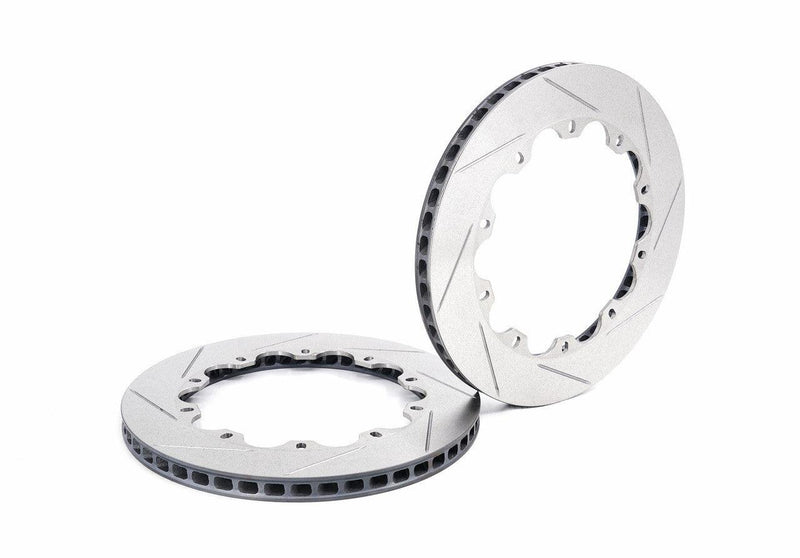

Rotor Rings

Cast from CM-250 high-carbon alloy, Paragon rotor rings offer excellent thermal conductivity and strength. Heat treatment and CBN surface machining ensure stability, consistent flatness, and optimal pad break-in.

Aluminium Hats

Rotor hats are CNC-machined from aerospace-grade 6061-T6 aluminium and MIL-A-8625 Type III hard anodised for heat and corrosion resistance. Material is removed where possible to reduce weight without compromising strength under load.

Finish Options

• Hard Anodised (Clear): Will not discolour under sustained heat – best for track use
• Black Dyed Hardcoat: May discolour above 260°C – ideal for street applications

Vehicle Fitment

• Audi RS4 B9
• Audi RS4 B9.5 (Facelift)
• Audi RS5 B9
• Audi RS5 B9.5 (Facelift)
• Model Years: 2018+

Fitment Notes

• Direct bolt-on installation – no modifications required
• Maintains OEM ABS and brake bias
• Compatible with OEM and aftermarket pads (same pad depth)

Technical Specifications
