AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump – 65mm Inline

The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is engineered for high-performance EFI vehicles, delivering consistent fuel flow for both naturally aspirated and forced induction setups. Its 39mm compact body with an offset inlet ensures easy installation in a wide range of applications, while internal components are built to withstand ethanol and methanol fuels, including up to E100 and M100.

Key Features

• Supports high-output EFI setups using petrol, E85, E100, and M100 fuels

• Offset inline design simplifies installation

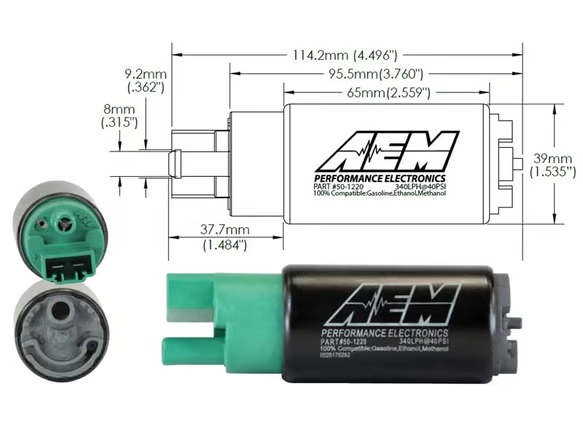

• Compact 39mm diameter body fits most fuel pump modules

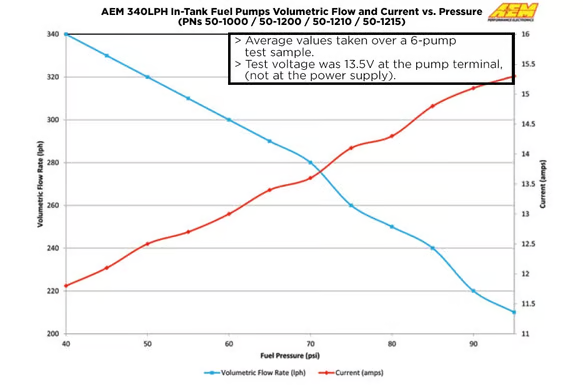

• Flow rate: 340LPH @ 40 PSI

• Durable black-plated steel housing with ceramic turbine internals

• Designed for in-tank mounting

• Each pump individually tested for quality control

Technical Specifications

• Weight: 354g

• Inlet: 11mm OD / 7.7mm ID offset

• Outlet: 8mm hose clamp

• Impeller: Single Scroll Ceramic Turbine

• Current Draw: 12A @ 40 PSI / 15A @ 80 PSI (13.5V)

• Voltage Range: 6–18V

• Fuse Rating: 20A

• PRV Activation: 80 PSI

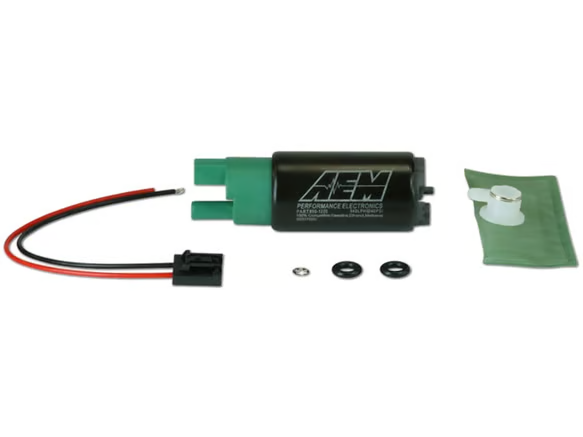

Included

• AEM 340LPH In-Tank Fuel Pump

• Pre-filter

• Wiring harness with flying leads

• Rubber sleeve and end cap

Note
Ensure your vehicle’s wiring and electrical system can support the fuel pump’s amperage draw for optimal performance and reliability.
