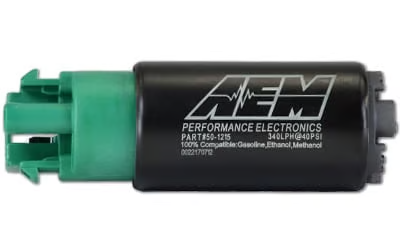

AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump – 65mm w/ Hooks

The AEM 340LPH E85-Compatible In-Tank Fuel Pump with hooks is engineered for high-output naturally aspirated and forced induction EFI vehicles. Featuring a compact 39mm body and offset inlet design, this pump is compatible with a wide range of vehicle applications. It is designed to support ethanol up to E100 and methanol up to M100, making it a versatile solution for modern performance builds.

Key Features

• Tested to deliver 340LPH @ 40 PSI (13.5V)

• E85, methanol (M100), and petrol compatible

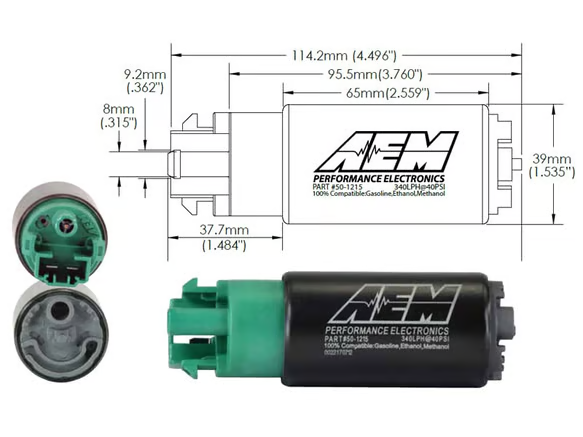

• Compact 39mm body with offset inlet for easy fitment

• Built-in hook-style mounting design

• Supports high-output EFI applications

• Each pump individually flow-tested for performance

• Durable ceramic turbine impeller design

• Black plated steel housing with laser-etched branding

Technical Specifications

• Inlet: 7.7mm ID, 11mm OD offset inline

• Outlet: 8mm hose clamp

• Weight: 354g (12.5oz)

• Pressure Relief Valve Activation: 80 PSI

• Current Draw: 12A @ 40 PSI / 15A @ 80 PSI (13.5V)

• Voltage Range: 6V–18V

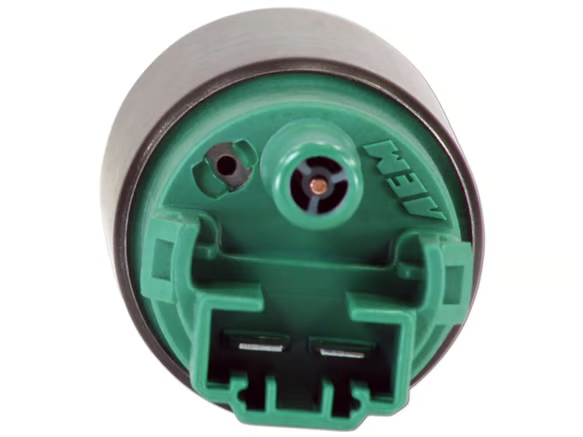

• Connector: 6mm spade terminals

• Fuse Recommendation: 20A

Included

• AEM 340LPH In-Tank Fuel Pump with hooks

• Wiring harness

• Pre filter

• End caps

• Rubber buffer sleeve

Note

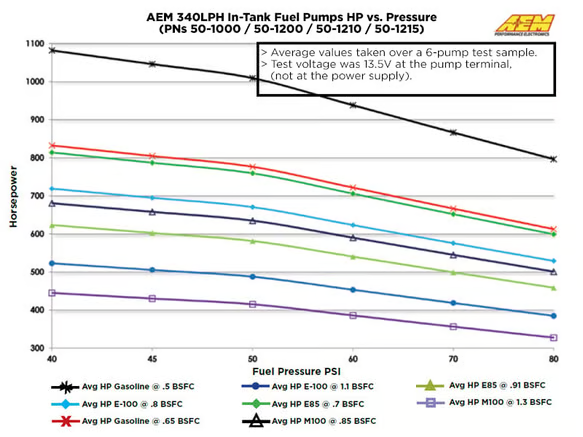

Power support is based on 13.5V at the terminal with a BSFC of 0.5. Actual supported power may vary depending on wiring, hose diameter, and system voltage. Always verify your vehicle’s fuel system compatibility before installation.
